In this tutorial we are going to see how to display image in web page (HTML , JSP) from web server file system.
1. Create new Dynamic web project by choosing File –> New –> Dynamic Web Project .

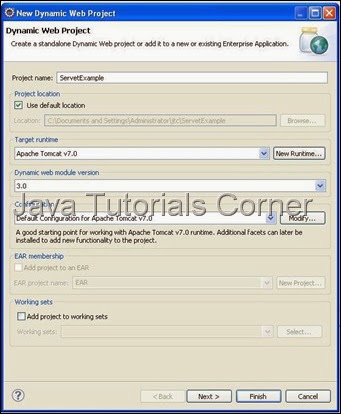

2. Create the Project called ServletExample as given below.
3. Create package called com.javatutorialscorner.servlet under ServletExample.

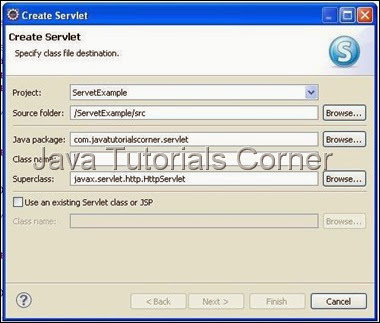

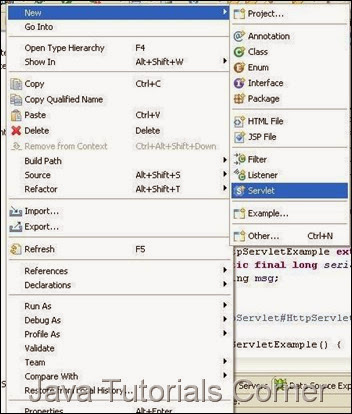

4. Create Servlet called DisplayImageServlet as shown in figure.
5. Click Next it will show URL mapping.You can edit Servlet URL if you need.
6. Click Next it will show methods available in HttpServlet. Select appropriate method you need.
7. By default your servlet will be mapped in web.xml, if your servlet not mapped in your web.xml use the following configuration to map the servlet in your web.xml
Servlet Mapping
web.xml
8. Add commons-io-1.3.2.jar in your build path.
9. Add the required code inside doGet() method.
DisplayImageServlet.java
9. Create html page in WebContent folder
display-image.html
10. Now save and Run the servlet, Run As –> Run on Server – Select your web Server to run the servlet. ( see How to configure tomcat in eclipse)
http://www.javatutorialcorner.com/2014/03/how-to-configure-tomcat-in-eclipse.html
11.call the following URL .
http://localhost:8080/ServletExample/display-image.html
Output
1. Create new Dynamic web project by choosing File –> New –> Dynamic Web Project .
2. Create the Project called ServletExample as given below.
3. Create package called com.javatutorialscorner.servlet under ServletExample.
4. Create Servlet called DisplayImageServlet as shown in figure.
5. Click Next it will show URL mapping.You can edit Servlet URL if you need.
6. Click Next it will show methods available in HttpServlet. Select appropriate method you need.
7. By default your servlet will be mapped in web.xml, if your servlet not mapped in your web.xml use the following configuration to map the servlet in your web.xml
Servlet Mapping
<servlet> <servlet-name>Your Servlet Name</servlet-name> <servlet-class>Fully Qulaified Servlet Class Name</servlet-class> </servlet> <servlet-mapping> <servlet-name>Your Servlet Name</servlet-name> <url-pattern>/URL to Call Servlet</url-pattern> </servlet-mapping>
web.xml
<?xml version="1.0" encoding="UTF-8"?> <web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xmlns:web="http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd" id="WebApp_ID" version="3.0"> <display-name>ServetExample</display-name> <welcome-file-list> <welcome-file>index.html</welcome-file> <welcome-file>index.htm</welcome-file> <welcome-file>index.jsp</welcome-file> <welcome-file>default.html</welcome-file> <welcome-file>default.htm</welcome-file> <welcome-file>default.jsp</welcome-file> </welcome-file-list> <servlet> <servlet-name>DisplayImageServlet</servlet-name> <servlet-class>com.javatutorialscorner.servlet.DisplayImageServlet</servlet-class> </servlet> <servlet-mapping> <servlet-name>DisplayImageServlet</servlet-name> <url-pattern>/DisplayImageServlet</url-pattern> </servlet-mapping> </web-app>
8. Add commons-io-1.3.2.jar in your build path.
9. Add the required code inside doGet() method.
DisplayImageServlet.java
package com.javatutorialscorner.servlet; import java.io.FileInputStream; import java.io.IOException; import java.io.InputStream; import java.io.OutputStream; import javax.servlet.ServletException; import javax.servlet.http.HttpServlet; import javax.servlet.http.HttpServletRequest; import javax.servlet.http.HttpServletResponse; import org.apache.commons.io.IOUtils; /** * Servlet implementation class DisplayImageServlet */ public class DisplayImageServlet extends HttpServlet { private static final long serialVersionUID = 1L; /** * @see HttpServlet#HttpServlet() */ public DisplayImageServlet() { super(); // TODO Auto-generated constructor stub } /** * @see HttpServlet#doGet(HttpServletRequest request, HttpServletResponse * response) */ protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { // TODO Auto-generated method stub try { // you can use FileInputStream to convert any type of file to // InputStream InputStream inputStream = new FileInputStream( "C://jtc//Water lilies.jpg"); // IOUtils jar used to convert Input Stream to byte array easily byte[] bytes = IOUtils.toByteArray(inputStream); response.setContentType("image/jpeg"); OutputStream outputStream = response.getOutputStream(); outputStream.write(bytes); outputStream.close(); } catch (Exception e) { // TODO: handle exception e.printStackTrace(); } } /** * @see HttpServlet#doPost(HttpServletRequest request, HttpServletResponse * response) */ protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { // TODO Auto-generated method stub } }
9. Create html page in WebContent folder
display-image.html
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd"> <html> <head> <meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1"> <title>Display Image in Web page using - Servlet</title> </head> <body> <h1>Display Image in Web page using - Servlet</h1> <img alt="servlet display image" src="http://localhost:8080/ServletExample/DisplayImageServlet"> </body> </html>
10. Now save and Run the servlet, Run As –> Run on Server – Select your web Server to run the servlet. ( see How to configure tomcat in eclipse)
http://www.javatutorialcorner.com/2014/03/how-to-configure-tomcat-in-eclipse.html
11.call the following URL .
http://localhost:8080/ServletExample/display-image.html

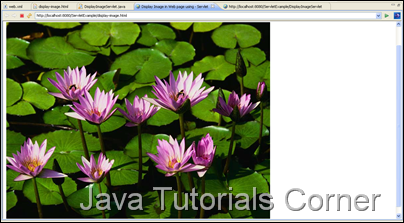

Output
